The FLASH carport model can be covered with an in-roof or on-roof photovoltaic system.

In-roof photovoltaic system

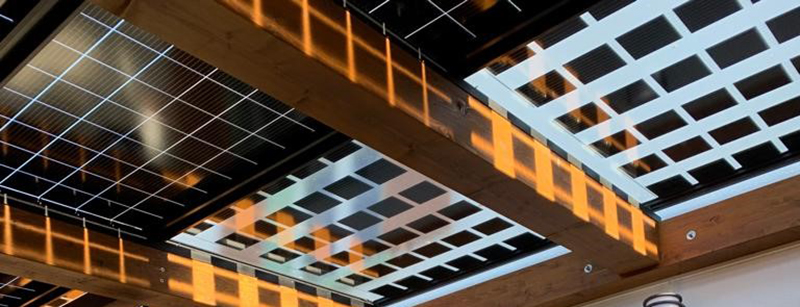

In the case of the in-roof PV system, the modules also serve as the roof cladding. The modules are visible from below. Translucent bifacial glass modules are used.

Bild von einer Sitzplatzüberdachung von swisscarport.ch©





 Translucent means that light shimmers through the roof between the individual
 photovoltaic light shimmers through the roof.











Picture of a seating area roofing from swisscarport.ch©


The incidence of light can be influenced by the number of cells per module.

  Visualiserung Single Wing, bifaziale Module | Planung, Konzipierung & Statik: swisscarport.ch©





    Bifacial modules not only use the direct solar
    solar radiation on the roof, but also the
    indirect and diffuse light on the back.

    Depending on the incidence of light and the
    radiance of the of the floor covering or the parked
    cars, bifacial modules provide up to 25%                                additional power.






Visualization Single Wing, bifacial modules | Planning, design & statics: swisscarport.ch©

  Visualiserung Single Wing, bifaziale Module | Planung, Konzipierung & Statik: swisscarport.ch©Roof edge trims made of galvanized and coated sheet steel, are available in 12 standard colors.

Advantages and disadvantages of the in-roof system compared to the on-roof system

Advantages:

  • aesthetically very appealing roof covering
  • immediately recognizable as a PV system
  • brighter under the roof
  • more yield due to additional power
  • more subsidies due to in-roof system
  • filigree roof edge
  • double lifetime of the modules (glass/glass technology)

Disadvantages:

  • higher price in the purchase
  • grid dimension of the modules must be taken into account
  • in winter condensation on bottom glass surface possible
  • Depending on the system provider

On-roof PV system

In the case of the on-roof system, the water-bearing roof cladding is a profiled sheet. The modules are screwed onto the profiled sheets with a substructure.


































Photovoltaik-AufdachanlagePhotovoltaic on-roof system

Profiled sheet roof

   Profiled sheet roof

    -Slope 2%
    -Galvanized and coated steel sheet on beam support
    -very stable and walkable
    -12 standard colors
    -Bottom side with anti-drip coating
    -location and ridge flashings as termination




















Substructure PV modules












When designing the substructure and fastening points, the local
the local conditions regarding wind and snow load are taken into account.


In most cases, the use the mounting system Speedrail from K2.


Modules

For rooftop installation, conventional framed glass/laminate modules from various suppliers can be used.

We prefer Full Black modules which are fixed with black clamps.
